Element tns:tMessDownOutput / tns:dmReturnedMessage
Namespace http://isds.czechpoint.cz/v20

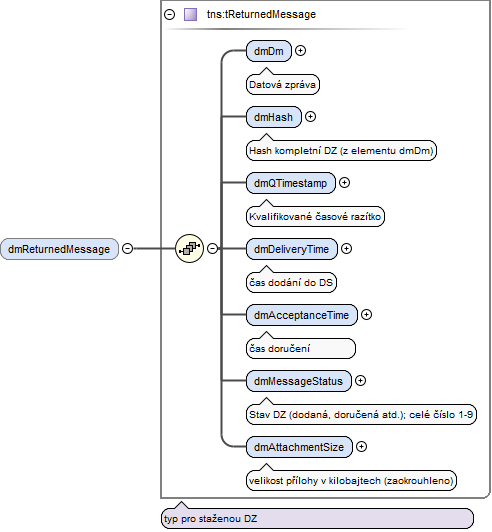

Diagram
Diagramv20.tmp#tReturnedMessage_dmDmv20.tmp#tReturnedMessage_dmHashv20.tmp#tReturnedMessage_dmQTimestampv20.tmp#tReturnedMessage_dmDeliveryTimev20.tmp#tReturnedMessage_dmAcceptanceTimev20.tmp#tReturnedMessage_dmMessageStatusv20.tmp#tReturnedMessage_dmAttachmentSizev20.tmp#tReturnedMessage
Type tns:tReturnedMessage
Properties
content complex
minOccurs 0
maxOccurs 1
nillable true
Model
Children tns:dmAcceptanceTime, tns:dmAttachmentSize, tns:dmDeliveryTime, tns:dmDm, tns:dmHash, tns:dmMessageStatus, tns:dmQTimestamp
Instance

<tns:dmReturnedMessage xmlns:tns="http://isds.czechpoint.cz/v20">
  <tns:dmDm>{1,1}</tns:dmDm>
  <tns:dmHash algorithm="">{1,1}</tns:dmHash>
  <tns:dmQTimestamp>{1,1}</tns:dmQTimestamp>
  <tns:dmDeliveryTime>{1,1}</tns:dmDeliveryTime>
  <tns:dmAcceptanceTime>{1,1}</tns:dmAcceptanceTime>
  <tns:dmMessageStatus>{1,1}</tns:dmMessageStatus>
  <tns:dmAttachmentSize>{1,1}</tns:dmAttachmentSize>
</tns:dmReturnedMessage>
Source

<xs:element name="dmReturnedMessage" type="tns:tReturnedMessage" nillable="true" minOccurs="0" maxOccurs="1"/>
